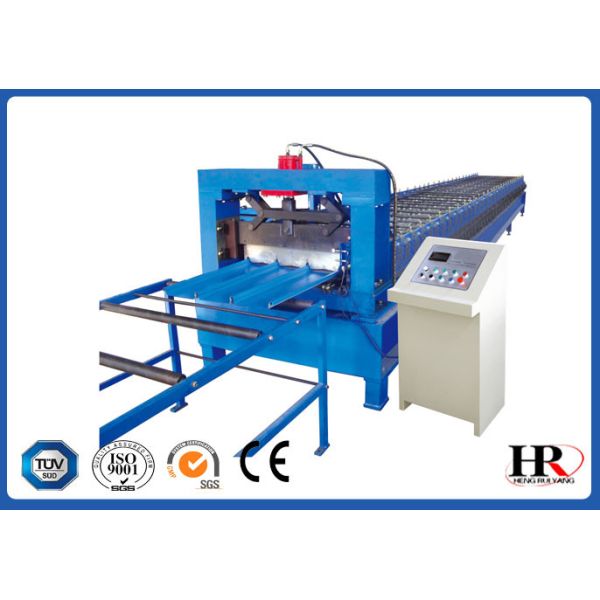

Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome

Name: Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome
Brand: Shenghong
Price: 1 USD

Quality Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome for sale

Brand Name : Shenghong

Model Number : SWL151222-104

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 25 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Material type : Good Price, Fast Delivery,

Roller drive : Decelerating motor + Chain drive

Feature : efficent, Whole life technical support

Service : " All-in-house source' Factory

Type : Tile Cold Bender Machine / Tile Roll Channeling Machine

After-sale service : Lifetime technical Support

Contact Now

Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome

Technical parameter

Item		Specification
Raw Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	0.3-0.7
	Yield strength(mpa)	235-550
Roller material		45# steel , coated with Chrome
Shaft for rollers		Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)		About 20-25
Output speed(m/min)		About 12 for 6m length sheet
Speed adjusting mode		Mitsubishi frequency transformer
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Nemicon Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		7.5KW
Total power(kw)		9.9 KW

Components of machine

Decoiler (manual decoiler and hydraulic decoiler for option)		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Run out table (auto. Stacker for option)		1set

Why choose this corrugate roll froming machine?

1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.

We customize your machines! To customize machine, we would love to know:

1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker

Have no idea about them?
We will be glad to recommend the lacal popular profile for you----Just let us know your country!

Process flow

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

Packing

1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 40-50 days after received advanced payment

Why us?

1. Customize roll forming machines since 2010.
2. Capacity: 25 sets / month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers

Machinery Photos

Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome

Workshop Show

Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome

Provide profile drawing & design technical support FOR FREE!
